Description
| Body Size(in) | 3/8 |
| Rated Pressure(Mpa) | 69 |
| Rated Flow(L/min) | 23 |
| Temperature Range(NBR) | -20℃ ~+100℃ |
| PART No . | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T | ||
| GT-TC-SP | DN10 | 79 | 62.5 | 21 | 28.2 | 32 | 11.2 | 24 | 24 | ZG3/8 | G3/8 | NPT3/8 |

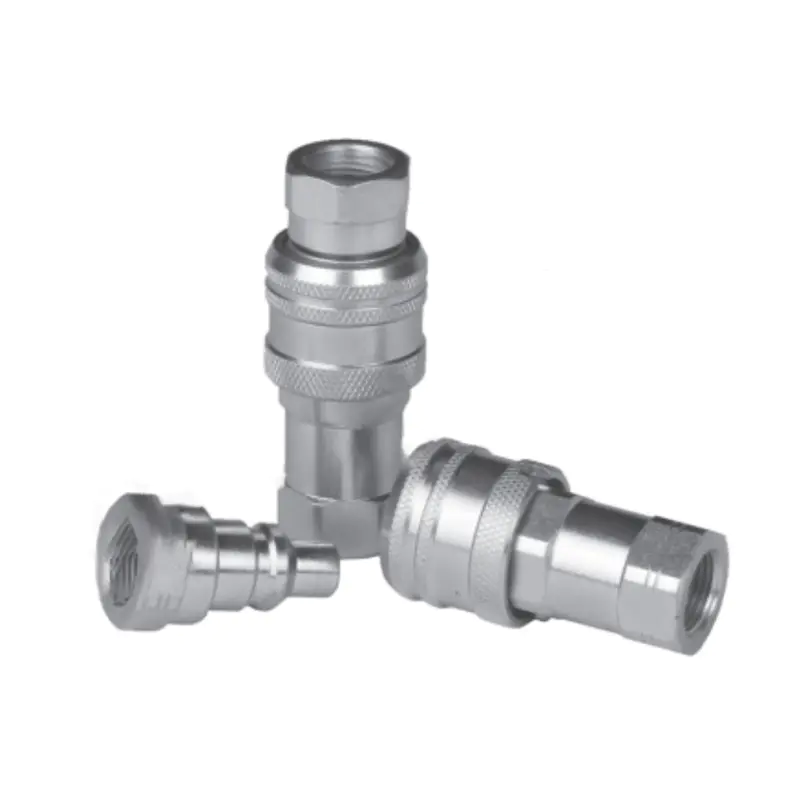

GT-TC open and close type super high pressure hydraulic quick coupling
Body Size(in) 3/8 Rated Pressure(Mpa) 69 Rated Flow(L/min) 23 Temperature Range(NBR) -20℃ ~+100℃ PART No . ISO L L1 L2 L3 D1 D2 CH1 CH2 T GT-TC-SP DN10 79 62.5 21 28.2 32 11.2 24 24 ZG3/8 G3/8 NPT3/8
